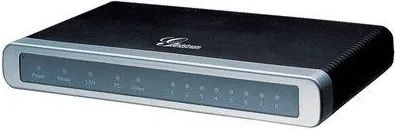

GXW410x IP Analog Gateway Series The GXW FXO IP Analog Gateway series offers the small enterprise, SOHO, remote offices and multi-location enterprises a cost-effective, easy to deploy VoIP FXO solution. The GXW410x series allows any business to seamlessly connect multiple locations with up to 8 PSTN lines, to an IP PBX system, or with an existing traditional phone system. The GXW series includes two models with 4 or 8 ports respectively.

Designed and tested for full interoperability with leading IP-PBXs, soft-switches and SIP-based environments, the GXW technology ensures manageability, a simple configuration, superb voice and video quality and feature rich functionality. The GXW FXO IP Analog Gateway series is based on open industry standards.
Features & Benefits

• 4 and 8 FXO port media gateways
• Video surveillance port
• External power supply
• Two RJ-45 ports 10/100 Mbps (switched or routed)
• TFTP and HTTP firmware upgrade support
• Multiple SIP accounts (choice of 3 profiles per account)
• Programmable PSTN line settings for different countries/regions
• 1 or 2 stage dialing
• Caller ID
• G. 168 - echo cancellation
• Flexible DTMF transmission: In Audio, RFC2833, SIP Info or any combination of the 3
• Selectable, multiple LBR coders per channel
• T. 38 Fax compliant

Feature Specifications  GXW-4104 GXW-4108 FXO Ports 4 FXO8 FXO Ethernet Ports 2 RJ45 10/100Mbps (LAN/WAN)2 RJ45 10/100Mbps (LAN/WAN) Video Input Yes - supports H. 264 video codec
(up to 30fps and CIF resolution)Yes - supports H. 264 video codec
(up to 30fps and CIF resolution) Audio Codecs G711u/a, G723, G729 and GSM, and T. 38 compliantG711u/a, G723, G729 and GSM, and T. 38 compliant Configuration Web based, and remote TFTP/HTTPWeb based, and remote TFTP/HTTP Power Input 12 Vdc, 1.25Amp12 Vdc, 1.25Amp Compliance FCC, CEFCC, CE
